Description

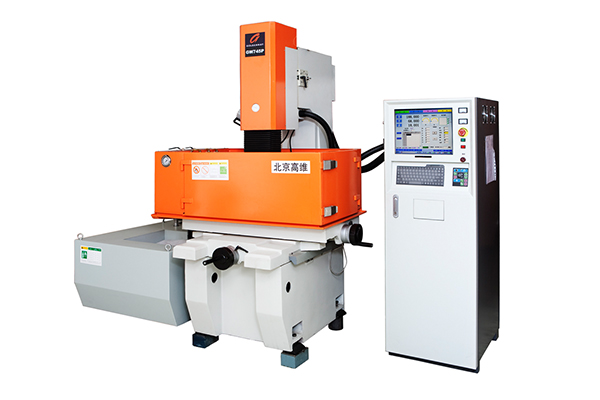

GW745P CNC electric discharge machine is suitable for machining middle-large size of dies and other parts, whose host is separated with the electrical cabinet. CNC EDM machinery is widely used in the fields of mould production for electronic component, automation, information and communication technology, household appliances. And it also plays an important role in facilitating the parts’ production in aerospace industry, automobile industry, dental industry, and watch and jewelry industry and many other fields.
Products Component
The electrical discharging power is divided into host computer and power pulse control system. Machining tool consists of mechanical bed, pulse power, control system, etc.
1. Host computer is the core of the whole system, which is responsible for running the exporter system and monitoring the whole system. This part is based on the new type of embedded industrial process control computer (IPC), which is stable and reliable. And it can be upgraded following the advancing of the electronic industry.
2. Power pulse control system is in charge of generating and adapting the pulse energy, which takes Adaptive Control Algorithm to assure the purity of electrical pulse. This part is composed with micro-controller, programmable logic devices, power devices and other devices.
Structure of the whole system includes
1. IPC (human-computer interaction, expert process database)
2. Servo motor and driver(drive the spindle do servo motion, control the discharge gap)
3. MCU unit (generate, detect and monitor the wave of electrical pulse)
4. power amplifier (output the electric energy for processing).
Advantages of CNC Electric Discharge Machine
1. The system has rich expert technology database and processing strategies.
2. Real time display of processing parameters and status.
3. The expert processing system can generate entire processing parameters from rough to finishing machining according the user’s preference to machining accuracy or speed.
4. Discharge sensitivity setting: The adaptive control algorithm can implement adaptive adjustment to the discharge state, to reduce the abnormal discharge and improve the quality of processing.
5. The system can handle multistage complex processing. The finishing condition of processing can be set as timing machining or machining as a given depth.
Characteristic of CNC Electric Discharge Machine
1. Simple and friendly system interface helps to operate more accessibility.
2. Oriented programming based on the expert system is easy to handle, Keeping the user free of professional knowledge.
3. Real-time status display, intelligently monitoring the discharging progress according user’s setting.
4. Using isopulse power supply technology, the CNC EDM machinery can control every discharge pulse power precisely, with advanced spark monitoring system.
5. Control and detection every discharge spark, processing fine machining and complex structure parts.
6. Energy-saving and environment-friendly goals are achieved by replacing current-limiting resistance with power inductor, meet the trend of green technology.
7. Standard module design is convenient for expanding energy.
8. Unique pulse character has outstanding performance on processing cemented carbide.
Parameters of CNC Electric Discharge Machine
GW745P CNC electric discharge machine is suitable for machining middle-large size of dies and other parts, whose host is separated with the electrical cabinet. CNC EDM machinery is widely used in the fields of mould production for electronic component, automation, information and communication technology, household appliances. And it also plays an important role in facilitating the parts’ production in aerospace industry, automobile industry, dental industry, and watch and jewelry industry and many other fields.
Products Component
The electrical discharging power is divided into host computer and power pulse control system. Machining tool consists of mechanical bed, pulse power, control system, etc.
1. Host computer is the core of the whole system, which is responsible for running the exporter system and monitoring the whole system. This part is based on the new type of embedded industrial process control computer (IPC), which is stable and reliable. And it can be upgraded following the advancing of the electronic industry.
2. Power pulse control system is in charge of generating and adapting the pulse energy, which takes Adaptive Control Algorithm to assure the purity of electrical pulse. This part is composed with micro-controller, programmable logic devices, power devices and other devices.
Structure of the whole system includes
1. IPC (human-computer interaction, expert process database)
2. Servo motor and driver(drive the spindle do servo motion, control the discharge gap)
3. MCU unit (generate, detect and monitor the wave of electrical pulse)
4. power amplifier (output the electric energy for processing).
Advantages of CNC Electric Discharge Machine
1. The system has rich expert technology database and processing strategies.
2. Real time display of processing parameters and status.
3. The expert processing system can generate entire processing parameters from rough to finishing machining according the user’s preference to machining accuracy or speed.
4. Discharge sensitivity setting: The adaptive control algorithm can implement adaptive adjustment to the discharge state, to reduce the abnormal discharge and improve the quality of processing.
5. The system can handle multistage complex processing. The finishing condition of processing can be set as timing machining or machining as a given depth.
Characteristic of CNC Electric Discharge Machine
1. Simple and friendly system interface helps to operate more accessibility.
2. Oriented programming based on the expert system is easy to handle, Keeping the user free of professional knowledge.
3. Real-time status display, intelligently monitoring the discharging progress according user’s setting.
4. Using isopulse power supply technology, the CNC EDM machinery can control every discharge pulse power precisely, with advanced spark monitoring system.
5. Control and detection every discharge spark, processing fine machining and complex structure parts.
6. Energy-saving and environment-friendly goals are achieved by replacing current-limiting resistance with power inductor, meet the trend of green technology.
7. Standard module design is convenient for expanding energy.
8. Unique pulse character has outstanding performance on processing cemented carbide.
Parameters of CNC Electric Discharge Machine
|
|
|
GW745P |
|
|
Machine tool |
Machine weight |
Kg |
2000 |
|
Overall dimension |
mm |
2100 × 1600 × 2200 |
|
|
Stroke |
X axis |
mm |
450 |
|
Y axis |
mm |
350 |
|
|
Z axis |
mm |
220+240 |
|
|
Distance between tip of spindle and table
surface |
mm |
240 to 700 |
|
|
Work range |
Worktable dimension |
mm |
360 × 182 |
|
Oil tank dimension |
mm |
1050 × 615 × 450 |
|
|
Maximum weight of electrode |
Kg |
200 |
|
|
Maximum weight of work piece |
Kg |
1200 |
|
|
Oil box |
Capacity |
L |
500 |
|
Filter |
|
2 paper
filter element |
|
|
Pules power supply |
Type |
|
Isopulse power
supply |
|
Peak current(standard configuration) |
A |
64 |
|
|
The best surface roughness(Ra) |
μm |
0.4/0.15 |
|
|
Minimum electrode wear |
|
0.1% |
|
|
Maximum machining efficiency 32A (64A) |
mm³/min |
180(400) |
|
|
96A(128A) |
mm³/min |
600(800) |
|
|
|
|
|
|
|
External power grid |
Three-phase input voltage |
V |
380 |
|
|
Consumed power 32A, 64A, 96A, 128A |
KVA |
3，5，7，10 |
|
Optional accessories |
Add 32A, 64A, 96A, 128A pulse power supply, Super fine module, Low loss module |
|
|
|
Dielectric fluid cooling device |
|
|
|
|
Micro fine pulse power supply |
|
|
|
|
Translational head(NC/manual operation) |
|
|
|
 |
 |
