Description

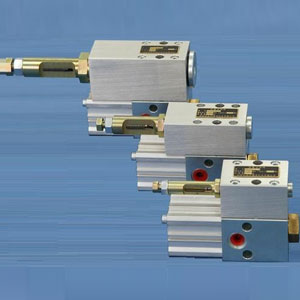

Our self-researched and developed DLQ series high pressure grease valve is applied in the grease filling system with small grease injection capacity. The valve utilizes volume quantitative and pneumatic control, then reverses the cylinder to promote displacement of the valve core, and finally to control the grease filling process.
The measuring cylinder is the main body of quantitative control, the volume of the measuring cylinder is changed through the adjusting bolt, so as to reach the purpose of adjusting the grease injection capacity.
Application Field
1. Bearing production line, fill grease before the sealed bearing gland
2. Automobile industry: skylight, doors, windows, seat sliding chute, rear view mirror and other grease injection positions
3. Semi-axle production line, filling of the semi-axle bearing grease
4. 3C industry: sliding chute of DVD, VCD, CD and other players
5. Bicycle parts industry
6. Motor, electric tools, gear, etc
Technical Parameters of High Pressure Grease Valve
Our self-researched and developed DLQ series high pressure grease valve is applied in the grease filling system with small grease injection capacity. The valve utilizes volume quantitative and pneumatic control, then reverses the cylinder to promote displacement of the valve core, and finally to control the grease filling process.
The measuring cylinder is the main body of quantitative control, the volume of the measuring cylinder is changed through the adjusting bolt, so as to reach the purpose of adjusting the grease injection capacity.
Application Field
1. Bearing production line, fill grease before the sealed bearing gland
2. Automobile industry: skylight, doors, windows, seat sliding chute, rear view mirror and other grease injection positions
3. Semi-axle production line, filling of the semi-axle bearing grease
4. 3C industry: sliding chute of DVD, VCD, CD and other players
5. Bicycle parts industry
6. Motor, electric tools, gear, etc
Technical Parameters of High Pressure Grease Valve
|
Type Item |
DLQ6/8-1 |
|
Crease injection range(g) |
0.1 to 1 |
|
Quantitative precision( g) |
±0.02 |
|
Suction function |
yes |
|
Oil outlet |
ZG 1/8 |
|
Proof pressure( MPa) |
30 |
|
Working pressure( MPa) |
10 to 25 |
|
Use environment temperature(ºC ) |
10 to 50 |
|
Control air pressure( MPa) |
0.3 to 0.6 |
|
A dimensions (mm) |
85.5 |
|
B max dimensions ( mm) |
154 |
 |
