Description

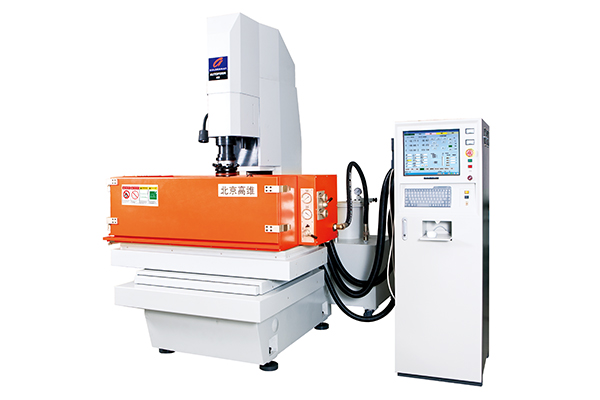

AF40 Three axis CNC EDM machinery is widely used in the fields of mould production for electronic component, automation, information and communication technology, household appliances. And it also plays an important role in facilitating the parts’ production in aerospace industry, automobile industry, dental industry, watch industry and jewelry industry and many other fields.
Features
1. With high rigidity structure design, high precision motion unit design, precision assembly technique.
2. Automatic measuring function meets the requirements of positioning alignment.
3. Programming expert system: Intelligent auto-generated program works in the process (from rough machining to finishing machining)according to technology requirements. Set machining priority grade according to machining efficiency or quality.
4. Rich translation mode: afford circular translation, square translation, cross translation, and 45 degree angle translation, etc. Adjust chip-exhaust condition to reduce electrode wear obviously.
5. Control system is new embedded industrial PC and multi-CPU system, which uses American GALIL motion controller, Yaskawa and Panassonic AC driven unit.
6. With windows platform, it features multitask operation and easy operation.
7. Displaying machining status anytime, which achieves capable network communication.
Parameters of Three Axis NC EDM Machinery
AF40 Three axis CNC EDM machinery is widely used in the fields of mould production for electronic component, automation, information and communication technology, household appliances. And it also plays an important role in facilitating the parts’ production in aerospace industry, automobile industry, dental industry, watch industry and jewelry industry and many other fields.
Features
1. With high rigidity structure design, high precision motion unit design, precision assembly technique.
2. Automatic measuring function meets the requirements of positioning alignment.
3. Programming expert system: Intelligent auto-generated program works in the process (from rough machining to finishing machining)according to technology requirements. Set machining priority grade according to machining efficiency or quality.
4. Rich translation mode: afford circular translation, square translation, cross translation, and 45 degree angle translation, etc. Adjust chip-exhaust condition to reduce electrode wear obviously.
5. Control system is new embedded industrial PC and multi-CPU system, which uses American GALIL motion controller, Yaskawa and Panassonic AC driven unit.
6. With windows platform, it features multitask operation and easy operation.
7. Displaying machining status anytime, which achieves capable network communication.
Parameters of Three Axis NC EDM Machinery
| CNC EDM Machine | AF40 | ||
| Machine tool | Machine tool structure | C Type Structure | |
| Machine weight | Kg | 2500 | |
| Overall dimension | mm | 1600 × 1600 × 2300 | |
| X stroke | mm | 380 | |
| Y stroke | mm | 280 | |
| Z stroke | mm | 280 | |
| Displacement measurement system | position encoder | ||
| X、Y、Z displacement measurement resolution | μm | 1 | |
| Working range | Worktable dimension(L×W) | mm | 700 × 400 |
| Oil groove | mm | ||
| Maximum weight of electrode | Kg | 50 | |
| Maximum weight of work piece | Kg | 600 | |
| Working fluid system | Oil tank capacity | L | 590 |
| Filter system | L | 4 paper filter | |
| Pulse power supply | Type | Isopulse power supply | |
| Peak current | A | 64 | |
| The best surface roughness(Ra) | μm | 0.1 | |
| Minimum electrode wear | 0.1% | ||
| Maximum machining efficiency (64A) | mm³/min | 400 | |
| CNC system | Screen | 17TFT | |
| Remote controller | Standard configuration | ||
| Programming expert system | Standard configuration | ||
| Control axis | Axes controlled simultaneously | ||
| Power producer | Three-phase voltage | V | 380 |
| Power frequency | Hz | 50 | |
| Power consumption (64A) | KVA | 7 | |
 |
