Description

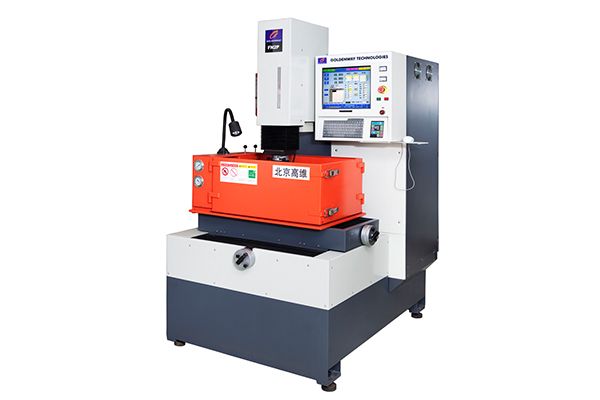

FN2P CNC EDM machinery is suitable for machining small-middle size of dies and other parts. The electrical cabinet is integrated with the host, small footprint, which is easy to mount.
Single axis CNC EDM machine is a machining device that to eroding the material in a certain liquid medium based on the electric erosion phenomena of the pulse discharge working on the conductor. To make the work piece meet the technical requirements of its shape, size and the surface finish quality after machining.
Products Component
The electrical discharging power is divided into host computer and lower pulse control system.Machining tool consists mechanical bed, pulse power, control system, etc.
1. Host computer is the core of the whole system, which is responsible for running the exporter system and monitoring the whole system. This part is based on the new type of embedded industrial process control computer (IPC), which is stable and reliable. And can be upgraded following the advancing of the electronic industry.
2. Power pulse control system is in charge of generating and adapting the pulse energy, which takes Adaptive Control Algorithm to assure the purity of electrical pulse. This part is composed with micro-controller, programmable logic devices, power devices and other devic
Structure of the whole system includes
1. IPC (human-computer interaction, expert process database)
2. Servo motor and driver(drive the spindle do servo motion, control the discharge gap)
3. MCU unit (generate, detect and monitor the wave of electrical pulse)
4. power amplifier (output the electric energy for processing).
Advantages of EDM Machinery
1. The system has rich expert technology database and processing strategies.
2. Real time display of processing parameters and status.
3. The expert processing system can generate entire processing parameters from rough to finishing machining according the user’s preference to machining accuracy or speed.
4. Discharge sensitivity setting: The adaptive control algorithm can implement adaptive adjustment to the discharge state, to reduce the abnormal discharge and improve the quality of processing.
5. The system can handle multistage complex processing. The finishing condition of processing can be set as timing machining or machining as a given depth.
Characteristic of EDM Machinery
1. Simple and friendly system interface helps to operate more accessibility.
2. Oriented programming based on the expert system is easy to handle, Keeping the user free of professional knowledge.
3. Real-time status display, intelligently monitoring the discharging progress according user’s setting.
4. Using isopulse power supply technology, the single axis NC EDM machine can control every discharge pulse power precisely, with advanced spark monitoring system.
5. Control and detection every discharge spark, processing fine machining and complex structure parts.
6. Energy-saving and environment-friendly goals are achieved by replacing current-limiting resistance with power inductor, meet the trend of green technology.
7. Standard module design is convenient for energy-expanding.
8. Unique pulse character has outstanding performance on processing cemented carbide.
Parameters of EDM Machinery
FN2P CNC EDM machinery is suitable for machining small-middle size of dies and other parts. The electrical cabinet is integrated with the host, small footprint, which is easy to mount.
Single axis CNC EDM machine is a machining device that to eroding the material in a certain liquid medium based on the electric erosion phenomena of the pulse discharge working on the conductor. To make the work piece meet the technical requirements of its shape, size and the surface finish quality after machining.
Products Component
The electrical discharging power is divided into host computer and lower pulse control system.Machining tool consists mechanical bed, pulse power, control system, etc.
1. Host computer is the core of the whole system, which is responsible for running the exporter system and monitoring the whole system. This part is based on the new type of embedded industrial process control computer (IPC), which is stable and reliable. And can be upgraded following the advancing of the electronic industry.
2. Power pulse control system is in charge of generating and adapting the pulse energy, which takes Adaptive Control Algorithm to assure the purity of electrical pulse. This part is composed with micro-controller, programmable logic devices, power devices and other devic
Structure of the whole system includes
1. IPC (human-computer interaction, expert process database)
2. Servo motor and driver(drive the spindle do servo motion, control the discharge gap)
3. MCU unit (generate, detect and monitor the wave of electrical pulse)
4. power amplifier (output the electric energy for processing).
Advantages of EDM Machinery
1. The system has rich expert technology database and processing strategies.
2. Real time display of processing parameters and status.
3. The expert processing system can generate entire processing parameters from rough to finishing machining according the user’s preference to machining accuracy or speed.
4. Discharge sensitivity setting: The adaptive control algorithm can implement adaptive adjustment to the discharge state, to reduce the abnormal discharge and improve the quality of processing.
5. The system can handle multistage complex processing. The finishing condition of processing can be set as timing machining or machining as a given depth.
Characteristic of EDM Machinery
1. Simple and friendly system interface helps to operate more accessibility.
2. Oriented programming based on the expert system is easy to handle, Keeping the user free of professional knowledge.
3. Real-time status display, intelligently monitoring the discharging progress according user’s setting.
4. Using isopulse power supply technology, the single axis NC EDM machine can control every discharge pulse power precisely, with advanced spark monitoring system.
5. Control and detection every discharge spark, processing fine machining and complex structure parts.
6. Energy-saving and environment-friendly goals are achieved by replacing current-limiting resistance with power inductor, meet the trend of green technology.
7. Standard module design is convenient for energy-expanding.
8. Unique pulse character has outstanding performance on processing cemented carbide.
Parameters of EDM Machinery
|
|
|
FN2P |
|
|
Machine
tool |
Machine
weight |
Kg |
1500 |
|
Overall dimension |
mm |
1320 × 1630
× 2120 |
|
|
Stroke |
X axis |
mm |
300 |
|
Y axis |
mm |
250 |
|
|
Z axis |
mm |
250 |
|
|
Distance
between tip of spindle and table surface |
mm |
250 to 500 |
|
|
Work
range |
Worktable
dimension |
mm |
500 × 300 |
|
Oil
tank dimension |
mm |
800 × 520
× 375 |
|
|
Maximum
weight of electrode |
Kg |
50 |
|
|
Maximum
weight of work piece |
Kg |
300 |
|
|
Oil box |
Capacity |
L |
400 |
|
Filter |
|
2 paper
filter element |
|
|
Pulse power
supply |
Type |
|
Isopulse power
supply |
|
Peak
current(standard configuration) |
A |
32 |
|
|
The
best surface roughness(Ra) |
μm |
0.4/0.15 |
|
|
Minimum
electrode wear |
|
0.1% |
|
|
Maximum
machining efficiency 32A (64A) |
mm³/min |
180(400) |
|
|
96A(128A) |
mm³/min |
600(800) |
|
|
|
|
|
|
|
External
power grid |
Three-phase
input voltage |
V |
380 |
|
|
Consumed
power 32A, 64A, 96A, 128A |
KVA |
3，5，7，10 |
|
Optional
accessories |
Add 32A, 64A, 96A, 128A pulse power supply, Super fine module, Low loss module |
|
|
|
Dielectric
fluid cooling device |
|
|
|
|
Micro
fine pulse power supply |
|
|
|
|
Translational
head(NC/manual operation) |
|
|
|
 |
